A circuit is a new model of computation, like turing machines. circuit are defined in terms of boolean logic, with components \(\text{AND}, \text{OR}, \text{NOT}\).
Most important quirk
constituents
- sequence of \(n\) true/false inputs \(x_1, …, x_{n}\)
- a graph with nodes belled AND/OR/NOT combining these things pairwise boolean gates
- a single output true/false
complexity measures of circuits
size (circuits)
number of gates—corresponds roughly to “time complexity”
depth (circuits)
length of the longest part from the output gate to inputs—roughly “parallel time complexity”
additional info
contrasts with TMs
in contrast with turing machines…
circuits have fixed input length \(n\), so to decide a language, we need a circuit family.
circuit family
A circuit family \(\qty {C_{n}}_{n \in \mathbb{N}}\) where \(C_{n}\) has \(n\) inputs—every circuit family decides a language \(L \subseteq \qty {0,1}^{*}\). “time complexity” is more formally then the rate at which a circuit family grows in size based on length of \(n\).
uniform (complexity theory)
A Turing Machine is a uniform type of computation—we have a single algorithm for all \(n\); circuits are a non-uniform model since a circuit family can contain different algorithms for different size.
issue!
The size complexity does not take into account the time taken to generate the circuit! Just because the circuit is small does not mean we have taken into account the complexity of generating the circuit.
So…
p-uniform
a circuit family is p-uniform if there exists a polytime algorithm for generating the \(n\) th circuit.
this notion corresponds to the “one-time pre-procesing cost” for all inputs of the same length.
\(\subseteq\) given \(x\), get the length of your input \(n = |x|\), create nth circuit \(C_{n}\) in poly-time and then run it in poly-time.
\(\supseteq\) given Cook-Levin Theorem, Cook-Levin Theorem givens a circuit such that \(x \in L \Leftrightarrow \exists y \text{ s.t. } C\qty(x,y) = 1\) in poly time. Now, for \(x \in L \in P\), then, \(y\) doesn’t matter so we just have a poly-time circuit.
size complexity
size complexity is the analogue of Time Complexity for circuit
\begin{equation} s \qty(n) : \mathbb{N} \to \mathbb{N}, \text{Size}\qty(C_{n}) \leq S\qty(n), \forall n \in \mathbb{N} \end{equation}
This gives us:
\begin{equation} \text{SIZE} \qty(s \qty(n)) = \qty {L :L\text{ has a family of size O(S(n))}} \end{equation}
P/poly
\begin{equation} P/poly = \text{SIZE}\qty(\text{poly}\qty(n)) \end{equation}
for all languages, it is in SIZE(2^O(n))
Because we can just build a circuit for a truth table for \(n\):
\begin{equation} C_{n}\qty(x) = \bigvee_{y \in L} \bigwedge_{i=1}^{n} x_{i} = y_{i} \end{equation}
p/poly contains undecidable languages
every unary language \(L \subseteq \qty {0,1}^{*}\) such that \(L \subseteq \qty {1^{n} : n \in \mathbb{N}}\) is in P/poly. Yet, we can just create a circuit that ANDs the \(n\) inputs for those that we accept and \(0\) for those that we don’t.
and there are unary decidable languages—such as \(1^{\langle M,n \rangle}\) such that \(\langle M,n \rangle \in \text{HALT}\).

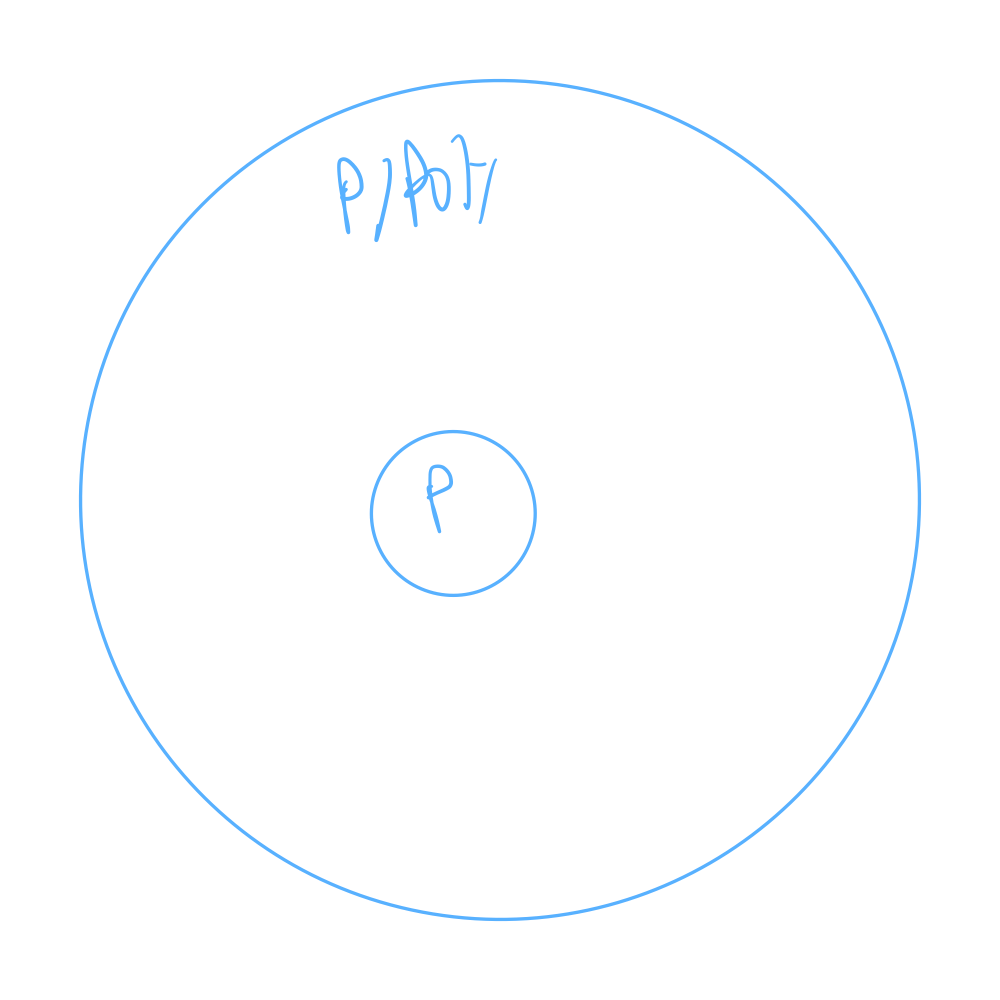

expanding P towards P/poly
an advice-taking TM is, given an input \(x\), we get a read-only tape with an advice string of length \(poly\qty(|x|)\) which depends solely on \(|x|\) and not \(x\) itself
an alternative definition of p/poly:
\begin{equation} L \in p poly \implies x \in L \Leftrightarrow M(x, y_{|x|})\text{ accepts} \end{equation}
notably, this is different from NP since our machine is not obligated to reject all \(M\qty(x, y), \forall y, x \not \in L\) as does NP. We just want this to work for some particular choices of \(y\).
all that’s left is to prove that the definition above is equaivalent to the original one for p/poly
\(\Rightarrow\) for every size \(n\), we just dump the circuit’s code into the “advice”.
\(\Leftarrow\) we do the Cook-Levin Theorem thing from p-uniform P/poly is exactly P, and hard code the advice into a unique circut for each of the code and then reduce to a poly circuit.
